Help to identify the parts in this picture.

Post by storm »

Here's a picture from http://www.propaneracing.com/photos.html that I'm interested in the fuel tank and associated parts of this race car. Is it possible to identify what the individual parts are apart from the tank?

I see the tank, hose, pressure gauge/junction block, hose, filters, hoses to front of car. I'm interested in the junction block and filters because I've never seen them on anything else but this particular car. Filter assemblies in Australia are tiny and must be a restriction on high powered vehicles.
Attachments
Every job is a self-portrait of the person who did it. Autograph your work with excellence.

Fuel flow requirements calculations viewtopic.php?f=5&t=1638

C3H8
Posts: 1042
Joined: Fri Sep 09, 2005 11:23 pm
Location: Winnipeg, Canada

Re: Help to identify the parts in this picture.

Post by C3H8 »

Hi Storm.
What an awesome car. The link was great. The underhood system is Century 100%. The carbs have the famous draglink setup common to Century carburetors for decades. Like you though I have never seen filters like this. Have you tried using the contact us box on the website. I noticed the site says he sold the car in 2016 but maybe the contact information is still valid.

storm
Posts: 653
Joined: Wed Jan 10, 2007 10:10 pm
Location: NSW, Australia

Re: Help to identify the parts in this picture.

Post by storm »

Hi C3H8
I have tried contacting the site owner a couple of times with no success.To my knowledge the update that says he sold the car in 2016 is recent (last few months) and after reading the site numerous times over the years it was obvious as early as the early to mid 2000s it was updated very sporadically.

Thanks for the info on the engine bay parts. The boot (trunk) has me interested and those filters are, I think, obviously designed for high flow. Do you think the junction block might be a 1 off unit specifically for this car?
Every job is a self-portrait of the person who did it. Autograph your work with excellence.

Fuel flow requirements calculations viewtopic.php?f=5&t=1638

Tom68
Posts: 20
Joined: Mon Jun 18, 2018 2:46 am
Location: Australia

Re: Help to identify the parts in this picture.

Post by Tom68 »

Impco filter.

storm
Posts: 653
Joined: Wed Jan 10, 2007 10:10 pm
Location: NSW, Australia

Re: Help to identify the parts in this picture.

Post by storm »

Thanks Tom, I'll do some more research and see if I can find a part number.
Every job is a self-portrait of the person who did it. Autograph your work with excellence.

Fuel flow requirements calculations viewtopic.php?f=5&t=1638

BigBlockMopar
Posts: 383
Joined: Sun Sep 02, 2007 3:29 pm
Location: Netherlands
Contact:

Re: Help to identify the parts in this picture.

Post by BigBlockMopar »

These filters are popular overhere mainly they also function as a 'local' additional storage of liquid propane. Because of that they are inadvertently called 'storage pots'.
They are usually mounted in the engine bay near the vaporizer.

I have a couple of these laying around too and want to install one to see if it helps against the hesistation during acceleration in low fuellevel-situations.

https://www.bigblockmopar.com
'73 Dodge Dart - 360ci - 11.3:1cr
MegaSquirt + HEI 7-pin timing control - Edelbrock AirGap - Cold Air Intake
IMPCO E / 425 mixer - A518 OD-trans - 3.55 gears - 225/50/17" tires.

storm
Posts: 653
Joined: Wed Jan 10, 2007 10:10 pm
Location: NSW, Australia

Re: Help to identify the parts in this picture.

Post by storm »

Thanks BBM
I looked through the info I have and couldn't find them, maybe they aren't available over here. They are certainly available online through ebay seller (mainly Poland).
What size fittings does it take?
Every job is a self-portrait of the person who did it. Autograph your work with excellence.

Fuel flow requirements calculations viewtopic.php?f=5&t=1638

BigBlockMopar
Posts: 383
Joined: Sun Sep 02, 2007 3:29 pm
Location: Netherlands
Contact:

Re: Help to identify the parts in this picture.

Post by BigBlockMopar »

Specs say 1/4" NPT.

https://www.bigblockmopar.com
'73 Dodge Dart - 360ci - 11.3:1cr
MegaSquirt + HEI 7-pin timing control - Edelbrock AirGap - Cold Air Intake
IMPCO E / 425 mixer - A518 OD-trans - 3.55 gears - 225/50/17" tires.

storm
Posts: 653
Joined: Wed Jan 10, 2007 10:10 pm
Location: NSW, Australia

Re: Help to identify the parts in this picture.

Post by storm »

Thanks for that.

Are you able to find out the size of the internal orifice?
Every job is a self-portrait of the person who did it. Autograph your work with excellence.

Fuel flow requirements calculations viewtopic.php?f=5&t=1638

BigBlockMopar
Posts: 383
Joined: Sun Sep 02, 2007 3:29 pm
Location: Netherlands
Contact:

Re: Help to identify the parts in this picture.

Post by BigBlockMopar »

Couldn't find anything online, but I would *suspect* it should be 1/4" all the way... but the image gives the suggestion that it necks down a size.
If I don't forget when I get to my garage I'll open up a filter and do some measuring.
https://www.bigblockmopar.com
'73 Dodge Dart - 360ci - 11.3:1cr
MegaSquirt + HEI 7-pin timing control - Edelbrock AirGap - Cold Air Intake
IMPCO E / 425 mixer - A518 OD-trans - 3.55 gears - 225/50/17" tires.

storm
Posts: 653
Joined: Wed Jan 10, 2007 10:10 pm
Location: NSW, Australia

Re: Help to identify the parts in this picture.

Post by storm »

You are a champ BBM, thank you very much.
Every job is a self-portrait of the person who did it. Autograph your work with excellence.

Fuel flow requirements calculations viewtopic.php?f=5&t=1638

BigBlockMopar
Posts: 383
Joined: Sun Sep 02, 2007 3:29 pm
Location: Netherlands
Contact:

Re: Help to identify the parts in this picture.

Post by BigBlockMopar »

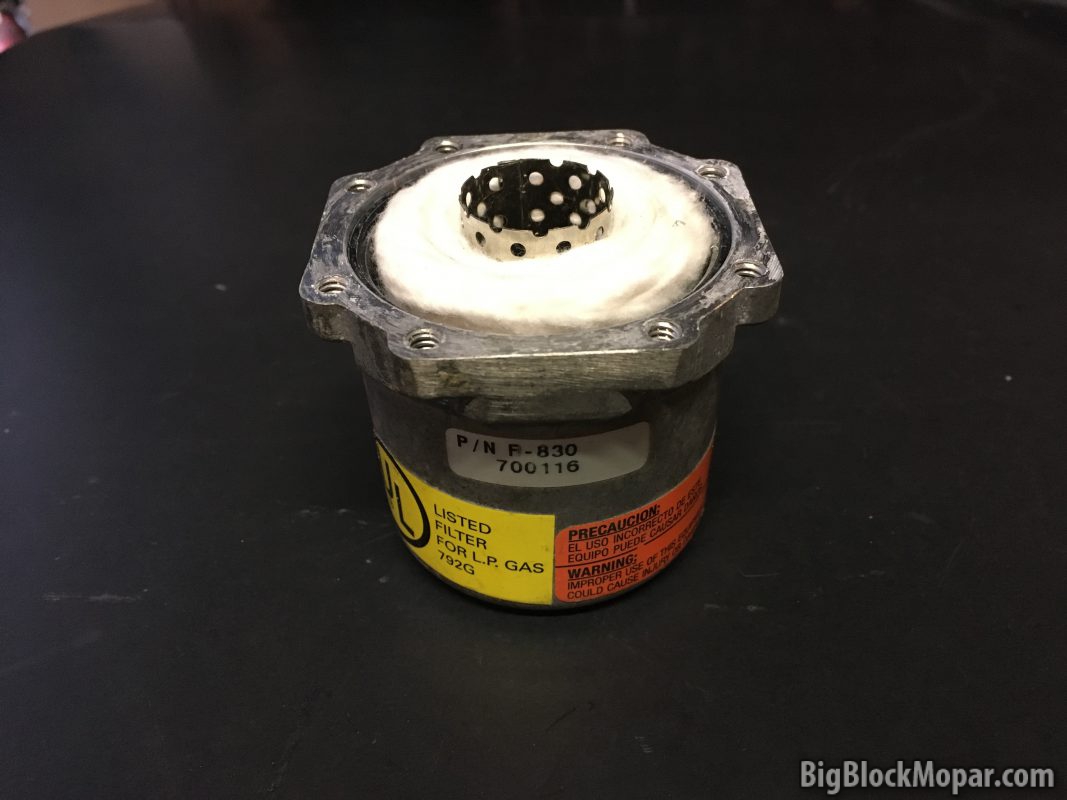

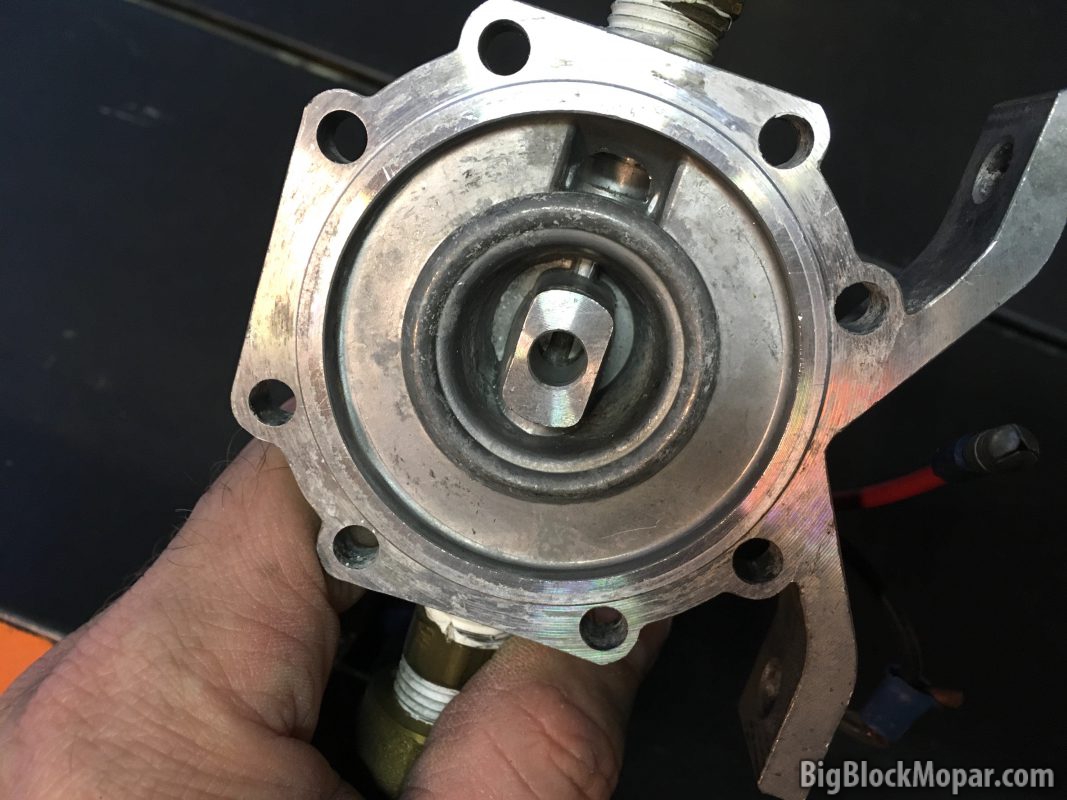

Checked out the filter inside and it looks like the passages don't narrow down in size, although it appeared that way at first glance too and still does appear so in the pics.
